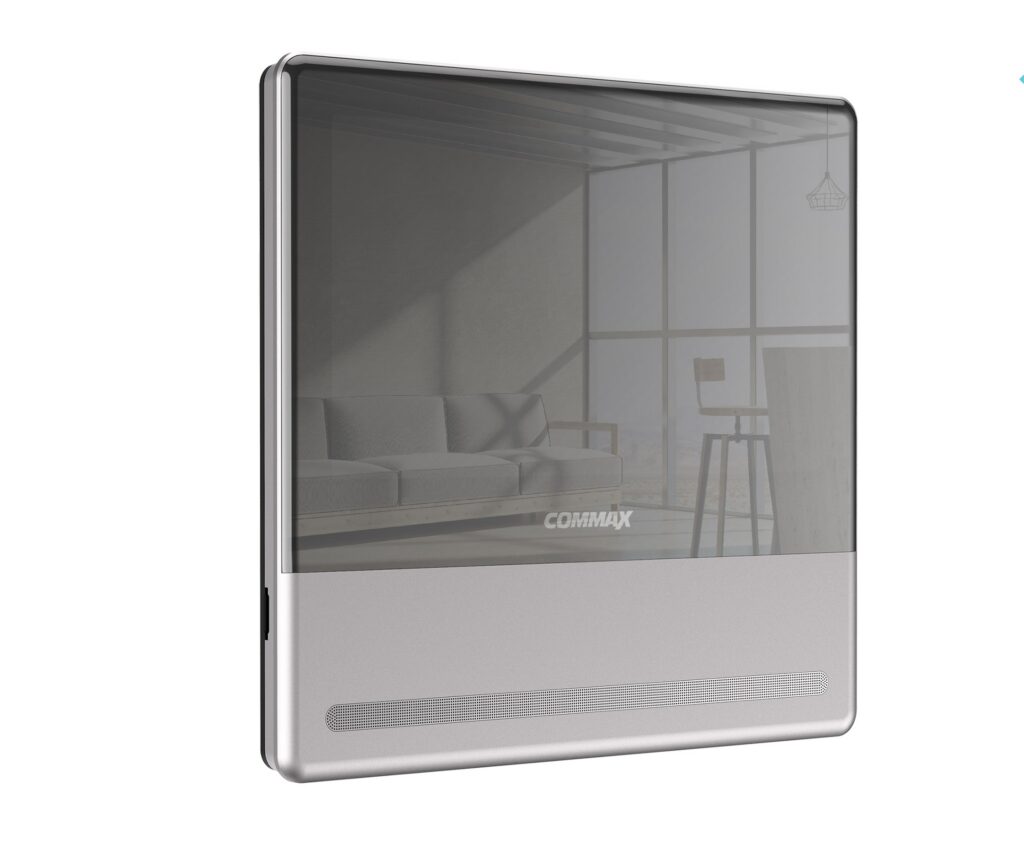

Commax CDV-70QT – Advanced 7" Wi-Fi Video Intercom for Professional Installations
The Commax CDV-70QT is a smart video intercom designed for integrators who need reliable, connected access control. With a large 7″ full-touch LCD, mobile app support, and motion-triggered image capture, it’s ideal for high-end residential or light commercial setups.
Key Features:
- 7″ Full-Touch LCD Screen – Responsive, high-resolution interface
- Wi-Fi Support – Remote access via smartphone (iOS/Android)
- Motion Detection – Auto-records visitor snapshots
- Image Storage – Internal memory for 50 images + microSD (up to 128GB)
- Device Expansion – Connects with 2 door cameras and 2 CCTV cameras
- Mobile Alarm – Supports magnetic sensor input for alerts
- Digital Lock Integration – Optional RF module for door control
- User-Friendly UI – Simplified interface with intuitive navigation
Technical Specifications:
- Model: CDV-70QT
- Power Supply: AC 100–240V, 50/60Hz (free voltage)
- Power Consumption: 6W (max), 1.3W (standby)
- Display Type: 7″ Digital Color LCD (Touchscreen)
- Resolution: 800 × 480 (WVGA)
- Wiring: 4-wire system (for door camera/interphone)
- Door Camera Support: Compatible with AHD 2M (Max)
- Interphone Support: DP-4VHP or equivalent
- Memory Type: Built-in flash + microSD slot (up to 128GB)
- Installation: Wall-mount
- Dimensions: 180(W) × 180(H) × 28(D) mm
- Operating Temperature: 0°C ~ +40°C
- Finish: Mirror-type modern design (Dark Silver)
With strong visual performance, mobile flexibility, and integrator-friendly wiring, the CDV-70QT is a top-tier choice for demanding smart entry installations.
